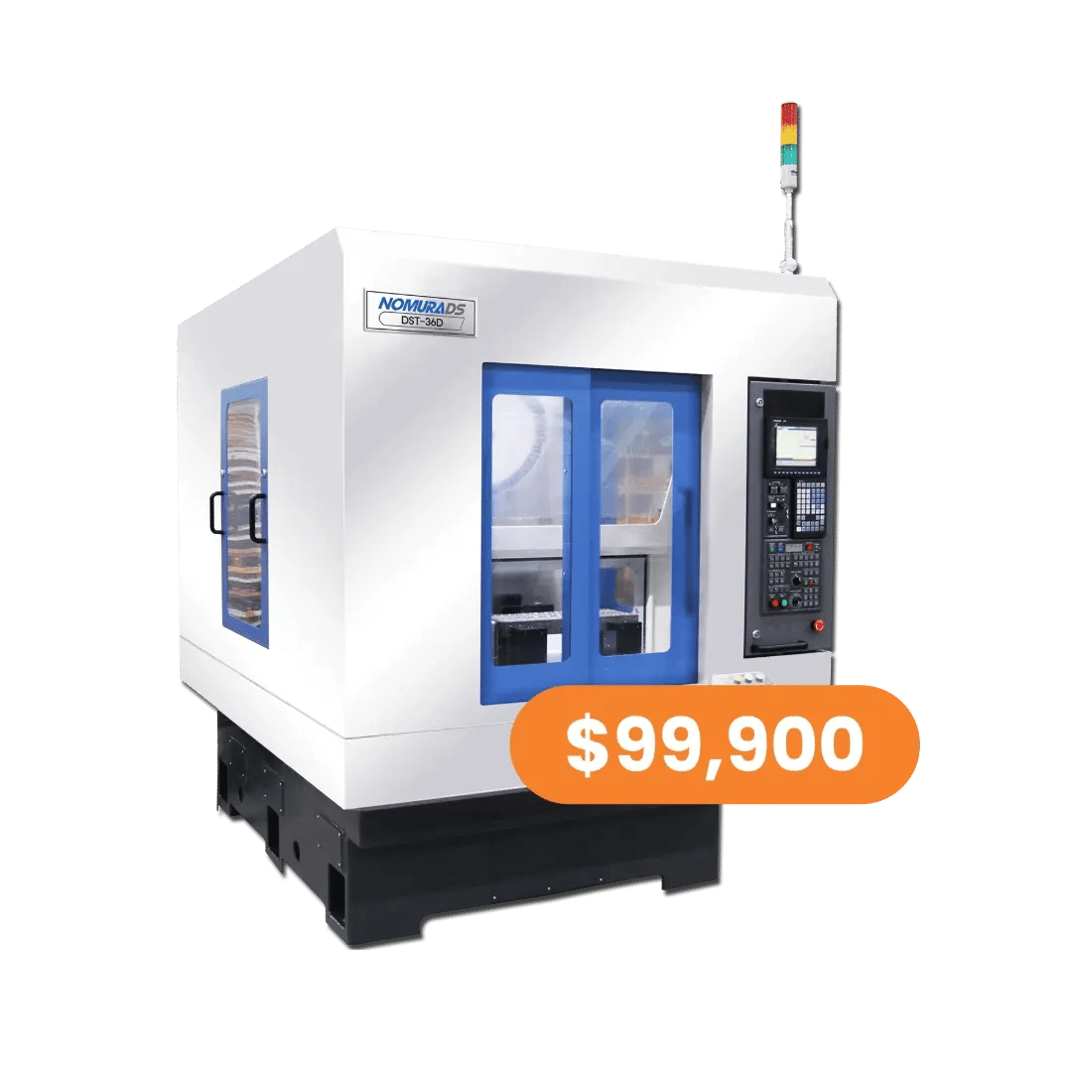

DST-36D
DST Series
Priced at $99,900

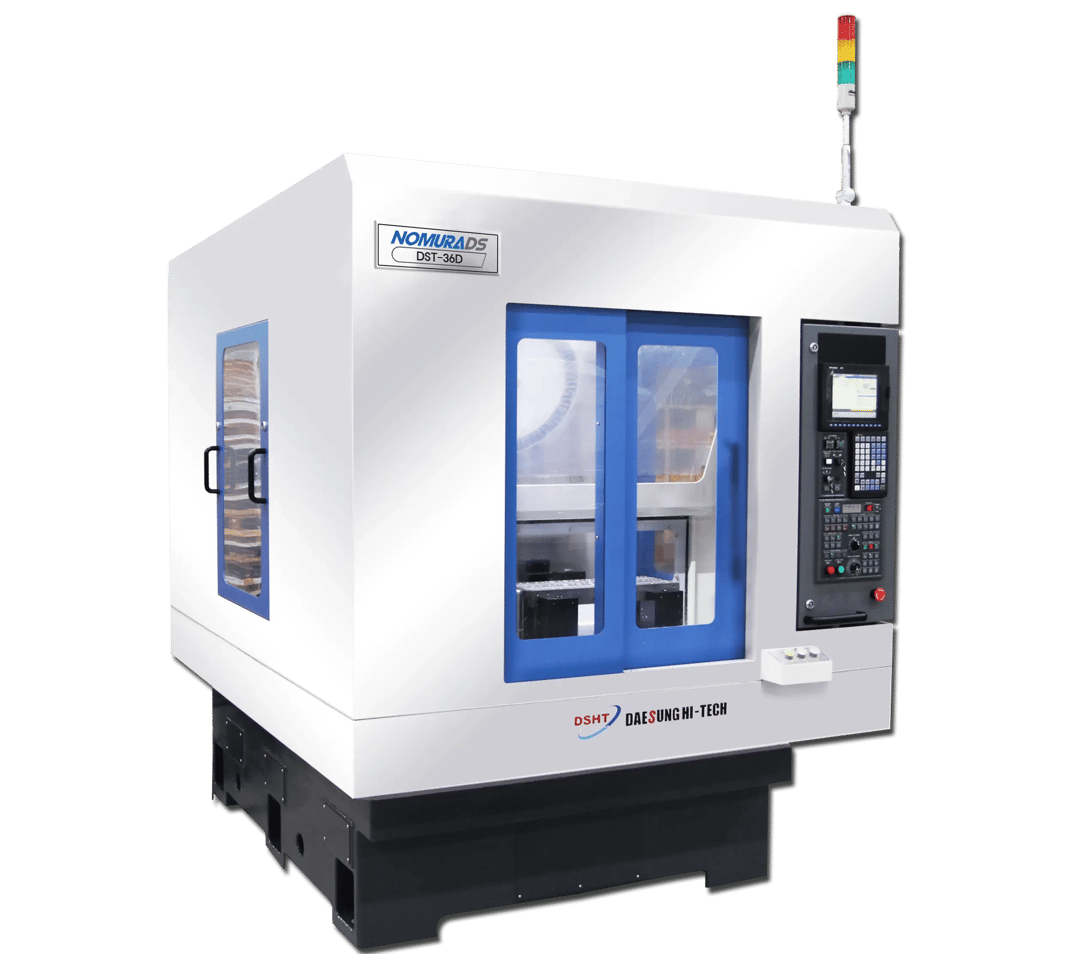

The DST-36D is a highly rigid and repeatable curvic coupling design, blending speed and power in a compact footprint. Its built-in work changer is perfect for production jobs, allowing the operator to load and unload parts while simultaneously machining.
30Taper |
10HP Spindle |
15kRPM |
Product Overview
The DST-36D is a highly rigid and repeatable curvic coupling design, blending speed and power in a compact footprint. Its built-in work changer is perfect for production jobs, allowing the operator to load and unload parts while simultaneously machining.
Nomura DS Machines for Every Industry
CNC machines are used in nearly every application. Discover how Nomura DS machining can enhance your production and boost efficiency in your industry.
Resources |
Support |
Get the knowledge you need to run your operation more smoothly and profitably. Access industry case studies, manuals and more. |
Keep your machine up and running with unmatched technical service and support. |
Specifications
General Info

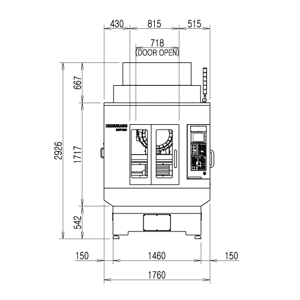

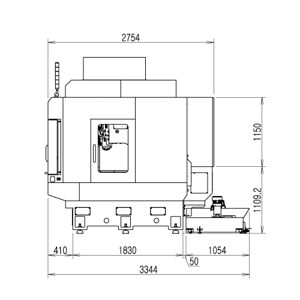

Floor Space
69.3 x 108.7 in
Table Size
2 - 25.59 x 15.75 in
Controller
Mitsubishi M80
Tool Stations
21
Spindle
Speed
15,000 RPM plus optional RPM (24,000)
Power
10 HP (7.5 HP with optional 24k spindle)
Taper
30 - BBT30 with face contact
Travel
Travel (X, Y, Z)
20.47 x 14.17 x 13.78 in
Rapid Traverse
1,889.7 x 1,889.7 x 2,362.2 ipm
