Right-Sizing Your Small Part Production with Compact Machining Centers

In today’s CNC shop environment, the machines you choose — and how you deploy them — have a major impact on profitability.

Shops invest heavily in large, versatile machining centers to tackle their most complex jobs. But over time, these machines often get filled with production runs of parts that don’t truly require their size, spindle power, or capacity. The result? Hidden inefficiencies that slowly erode margins.

Right-sizing your production, ie. matching parts to machines based on their true requirements, is one of the most effective ways to optimize throughput, reduce costs, and make room for growth. And, at the heart of this strategy, is a class of equipment many shops overlook: compact CNC machining centers.

The Right-Sizing Problem: Why Machine Size Matters More Than You Think

It’s a common production trap: a machine shop lands a recurring order for a part that is too small for the machine it’s being cut on.

This doesn’t necessarily mean the part is “small”—it could be a complex casting, an automotive component, or an aerospace housing. The key point is that the part's needed machining envelope and tooling requirements don’t take advantage of the machine’s full capability.

For example:

• A larger HMC is used to run a mid-size aluminum part with tight tolerances but limited material removal.

• A 40-taper VMC is booked solid, cutting batches of medium-sized steel parts that require high spindle speeds but minimal heavy cutting.

• Complex parts in hard materials (4140, stainless, Inconel, titanium alloys) are being machined slowly on oversized machines because the shop believes smaller machines lack the rigidity or stability to do the job efficiently.

In these scenarios, the machine’s purchase cost, operating costs, and cycle times are often higher than necessary — not because the job is inherently difficult, but because the machine is mismatched to the part’s true requirements.

The Misconception: Compact Machines Can’t Handle “Real” Production

One of the biggest barriers to right-sizing is the perception that compact machining centers are limited in their capability:

• "They don’t have enough rigidity."
• "They can’t cut hard materials effectively."
• "They’re only for small, light-duty work."

These assumptions are no longer valid. Modern compact machining centers are engineered to deliver:

• Exceptional rigidity and stability — heavy castings, precision linear guides, and optimized machine geometries ensure performance in demanding cuts.
• High spindle speeds and torque — with spindles capable of 15,000–30,000 RPM and sufficient torque to cut materials like 4140, stainless, Inconel, and titanium with confidence.
• Tight tolerances — easily holding aerospace and medical precision requirements, even in high-volume production.
• Fast cycle times — reduced tool change times, shorter travel distances, and high acceleration rates translate directly to faster throughput.

Simply put, these machines are capable of handling parts traditionally reserved for much larger equipment — and are doing so with lower costs and greater efficiency.

Why It Matters in High-Volume Production

High-volume production magnifies inefficiencies. If you’re machining 10 parts, the difference between an optimized and an oversized machine might be trivial. If you’re machining 10,000 parts, or running a part family that repeats frequently, the impact on cycle time, energy consumption, and machine availability can be enormous.

Here’s why compact machining centers often deliver significant profitability advantages in this environment:

1. Faster Cycle Times

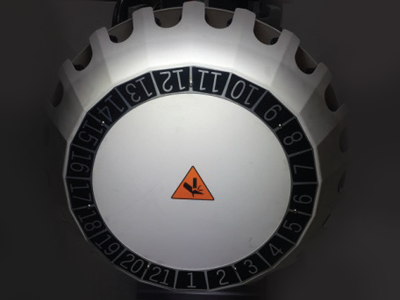

Compact machining centers are designed with smaller work envelopes and lighter axis masses, enabling faster positioning and rapid tool changes. Tool-to-tool change times of about 1 second are common, critical for parts with multiple tool engagements. Shorter distances between spindle and tool changer also streamline operations.

When you apply these small improvements across thousands of parts, the time savings add up fast, freeing capacity for additional production.

2. Lower Operating Costs

Compact machining centers consume less energy, generate less heat, and require less coolant and compressed air. For high-volume jobs, this can reduce per-part energy costs by anywhere from 25 to 50%. Maintenance and consumable wear (bearings, ball screws, way covers) is also reduced compared to large machines running light or mid-sized parts.

3. Improved Machine Utilization

By moving mid-size and small-part jobs off large machines, you free those machines to run the work they’re truly designed for: large parts, heavy metal removal, or complex multi-face operations. This avoids capacity bottlenecks, reduces the need for overtime or new capital investment, and allows better prioritization of high-value work.

4. Optimized Floor Space

Compact machining centers occupy 40–50% less space than larger 40 or 50-taper VMCs or HMCs. This enables higher spindle density per square foot which is critical for shops focused on scaling throughput without adding facility space. It also makes automation more practical — compact machines often integrate easily with robot loaders or pallet systems, further improving efficiency.

When to Right-Size: Key Signs to Watch For

Right-sizing isn’t about replacing your large machines — it’s about deploying them strategically while using compact machining centers where they make the most sense.

Look for these signs that your shop could benefit:

• Recurring mid-size or small parts are consuming hours on large machines.
• You see long tool change or positioning times on high-volume jobs.
• Floor space is limiting your ability to add new spindles.
• Operating costs on certain parts are higher than anticipated.
• Your large machines are routinely booked, delaying delivery of complex or high-volume jobs.

The Bottom Line

Modern compact machining centers can do far more than they’re often given credit for. They offer the rigidity, spindle performance, and precision needed to handle mid-size and complex parts, including difficult-to-machine materials, with the speed and efficiency required in high-volume production.

By right-sizing your production and using the right machine for each job, you can benefit from:

• Improved throughput
• Lower per-part cost
• Freed up capacity on high-value machines
• Reduced energy and maintenance expenses
• Wider profit margins across your shop

In an era where lead times are tightening and margins are under constant pressure, right-sizing is the strategic advantage that can set your shop apart.
