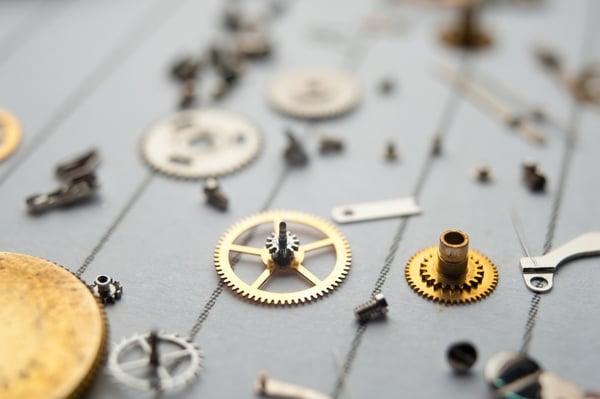

Swiss machining has a long history rooted in the demand for exceptional precision and craftsmanship. Originally developed in the late 19th century in Switzerland, this machining technique was created to produce the intricate components needed for the country’s booming watchmaking industry. Traditional lathes struggled to maintain the level of accuracy required for tiny watch parts, leading Swiss manufacturers to engineer a new approach: a sliding headstock lathe with a guide bushing. This breakthrough provided the precision and stability needed for small-diameter workpieces.
Over the decades, Swiss machining technology evolved beyond watchmaking and found its place in industries requiring high-precision, small-scale components. As computer numerical control (CNC) technology advanced, Swiss-type lathes became even more capable, integrating multi-axis movement, live tooling, and automation to handle complex part geometries with exceptional efficiency. Now, Swiss-type lathes are the gold standard for industries that require accuracy and efficiency.
Quick Links
- What is Swiss Machining?
- The Importance of Precision and Consistency in Modern Manufacturing
- 5 Key Benefits of Swiss-Type Machining
- Challenges and Considerations for Swiss Machining
- Best Practices for Swiss Machining Success
- Improving Part Production with Swiss Machining
What is Swiss Machining?

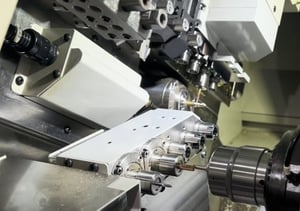

Swiss machining, also known as Swiss turning, is a highly precise manufacturing process that uses Swiss-type CNC lathes to produce small, intricate parts with tight tolerances. Today, this method is widely used in medical device manufacturing, aerospace, electronics, and other industries requiring high-precision components.

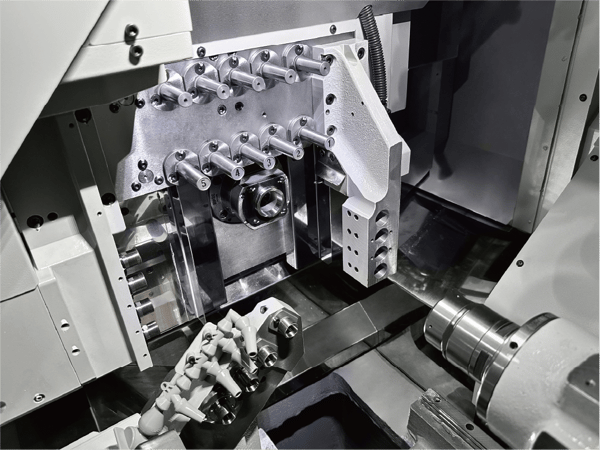

The key distinction of Swiss machining is the use of a sliding headstock and guide bushing. Unlike conventional CNC lathes, where the workpiece is held rigidly in a chuck or collet and rotated, a Swiss-type lathe feeds the material through a guide bushing. This design allows the cutting tools to work close to the point of support, minimizing deflection and vibration, which results in superior accuracy and fine surface finishes.
Key Characteristics of Swiss-Type Lathes
Swiss-type CNC lathes efficiently produce small, complex parts, often in high volumes. Some defining characteristics include:
- Sliding Headstock & Guide Bushing: The workpiece moves axially through a guide bushing, providing continuous support and reducing deflection during machining.
- Multi-Axis Capabilities: Many Swiss machines feature multiple axes, allowing for simultaneous machining operations such as turning, milling, drilling, and threading in a single setup.
- High-Precision Machining: Swiss lathes can achieve tolerances as tight as ±0.0002 inches (±5 microns).
- Sub-Spindle for Secondary Operations: Many models include a sub-spindle that enables backworking, allowing for complete part production without additional setups.
- Automatic Bar Feeding: Swiss lathes often integrate with bar feeders for continuous, unattended operation, improving efficiency in high-volume production.
While both Swiss-type and conventional CNC lathes offer precision turning, they differ in design and functionality:
- Workpiece Holding
- Swiss-Type Lathe: Supported by a guide bushing, reducing deflection
-
Conventional CNC Lathe: Clamped in a chuck or collet
- Material Movement
- Swiss-Type Lathe: Sliding headstock moves material axially
-
Conventional CNC Lathe: Fixed workpiece where only tools move
- Complexity & Operations
- Swiss-Type Lathe: Multi-axis, simultaneous turning, milling, and backworking
-
Conventional CNC Lathe: Typically fewer axes and may require multiple setups
- Ideal Part Types
- Swiss-Type Lathe: Small, intricate, high-precision part
-
Conventional CNC Lathe: Larger components, general-purpose turning
- Production Efficiency
- Swiss-Type Lathe: High-volume, continuous operation with bar feeders
-
Conventional CNC Lathe: Suitable for varied batch sizes but may require more operator intervention without robotic automation.
While conventional CNC lathes are versatile for various turning applications, Swiss lathes excel in precision micro-machining and complex geometries that would be challenging or inefficient on a standard lathe.
The Importance of Precision and Consistency in Modern Manufacturing
In high-quality manufacturing, precision is essential. Whether producing medical implants, aerospace components, or intricate electronic connectors, even minor deviations can lead to part failure, increased scrap rates, or costly rework.
This is where Swiss machining stands out, delivering unmatched accuracy and repeatability. As established, Swiss-type lathes are designed to produce parts with extremely tight tolerances, making them ideal for smaller components requiring a level of precision that’s nearly impossible to achieve with conventional lathes.
The secret lies in the sliding headstock and guide bushing system. Unlike traditional lathes where the workpiece is clamped and held stationary, a Swiss lathe feeds the material through a guide bushing, which provides continuous support as the cutting tools remove material. This minimizes deflection and vibration, two of the biggest causes of machining inaccuracies.
Additionally, Swiss machines often incorporate high-resolution encoders and thermal compensation systems, which help maintain precision even as the machine warms up during long production runs. The ability to machine components with such precision ensures consistency from the first part in a production run to the last, which is critical for manufacturers producing thousands of identical parts.
Beyond their incredible precision, Swiss-type lathes are also known for their ability to handle intricate, multi-featured parts in a single operation. Thanks to live tooling and multi-axis capabilities, Swiss machines can perform turning, milling, drilling, threading, and even gear hobbing–all within the same setup. This not only improves accuracy but also increases efficiency by reducing the risk of misalignment or errors introduced during part transfers.
By combining advanced machine design, multi-axis capabilities, and live tooling, Swiss machining delivers exceptional precision and repeatability.
5 Key Benefits of Swiss-Type Machining
As outlined, Swiss machining has become the go-to choice for industries that demand high precision and efficiency for small parts. Here’s a closer look at some of the key advantages that Swiss-type CNC lathes bring to the manufacturing industry.
1. Unmatched Precision & Tight Tolerances
Swiss-type lathes are designed to achieve extreme precision, with tolerances as tight as ±0.0002 inches. The combination of a sliding headstock and guide bushing provides continuous support to the workpiece, minimizing deflection and ensuring consistent accuracy. This level of precision is critical in industries like medical device manufacturing, aerospace, and electronics, where even the slightest deviation can affect performance and compliance.
2. Increased Efficiency & Productivity
Swiss machining allows for multi-axis, simultaneous operations, meaning multiple processes can happen in a single setup. This significantly reduces cycle times compared to conventional lathes that may require multiple setups and tool changes. Additionally, the ability to integrate bar feeders means machines can run continuously, maximizing productivity and reducing downtime.
3. Cost Savings & Reduced Waste
The efficiency of Swiss machining directly translates into cost savings. By completing complex parts in a single operation, manufacturers can eliminate secondary machining steps, reducing labor costs and setup times.
Plus, the close support of the guide bushing minimizes material deflection, reducing scrap rates and ensuring optimal material utilization, which is especially beneficial when machining expensive metals like titanium.
4. Automation & Lights-Out Manufacturing
Modern Swiss-type CNC lathes incorporate automated features, meaning they can run unattended, which is essential for lights-out production. Many machines are equipped with advanced controls, automatic bar feeders, and sub-spindles for complete part machining without manual intervention. This allows manufacturers to run machines overnight or over weekends, boosting throughput and lowering operational costs while maintaining consistent quality.
5. Versatility Across Materials & Applications
Swiss machining isn’t limited to a single industry or material. These machines can handle a wide range of materials, including stainless steel, aluminum, brass, titanium, and engineered plastics. Their ability to perform complex machining operations in a single pass makes them ideal for producing medical implants, aerospace components, watch parts, hydraulic fittings, and electrical connectors–essentially any small, intricate part that requires tight tolerances and fine surface finishes.
Ultimately, Swiss-type machining offers a powerful combination of precision, efficiency, and automation, making it an essential solution for manufacturers looking to stay competitive in high-precision industries.
Challenges and Considerations For Swiss Machining
While Swiss machining offers precision and efficiency, adopting the technology requires careful consideration of factors like cost, operator expertise, and machine selection.
Initial Investment and ROI Considerations
Swiss-type CNC lathes are highly specialized machines, and their advanced capabilities come with a higher upfront cost compared to most conventional lathes, depending on the number of axles, tooling options, and more. Additionally, manufacturers may need to invest in bar feeders, toolholders, and software upgrades to fully optimize production.
However, the return on investment can be significant. Swiss machining often reduces cycle times, minimizes waste, and eliminates secondary operations, leading to lower labor costs and higher production efficiency. For businesses producing high volumes of precision parts, the cost savings over time can justify the initial investment. Careful cost-benefit analysis and production forecasting are essential to determine if a Swiss lathe is the right fit for a shop’s operations.
Operator Training and Skill Requirements
Though many Swiss-type lathes offer automated capabilities, they still require specialized knowledge. Operators must understand programming multi-axis movements, optimizing cutting parameters, and working with guide bushings, all of which are skills that may take time to develop. Training is crucial to avoid common issues like excessive tool wear, improper bar stock setup, or inefficient cycle times.
Fortunately, many Swiss machine manufacturers offer programs and software simulations to help operators get up to speed. Shops may also benefit from providing in-depth in-house training to bridge the learning curve. While Swiss machines can run lights-out, ensuring they’re properly programmed and maintained requires thorough time and effort.
Machine Selection Based on Production Needs
Not all Swiss machines are built the same, and choosing the right model depends on part complexity, volume, and material requirements. Key considerations include:
- Number of Axes & Live Tooling: More complex parts may require more axes and advanced live tooling capabilities for multi-operation machining.
- Bar Stock Diameter Capacity: Swiss lathes are optimized for smaller-diameter workpieces. Selecting the right size capacity ensures compatibility with your parts.
- Sub-Spindle & Backworking Capabilities: If your production requires machining on both ends of a part, a machine with a sub-spindle for backworking is essential.
- Automation Features: High-volume manufacturers may need integrated bar feeders, part catchers, and chip management systems to enable extended, unattended production.
Choosing the right Swiss lathe means balancing capabilities with production goals, ensuring that the machine fits current and future business needs. Careful planning and consultation with Swiss machine manufacturers can help businesses maximize efficiency, minimize downtime, and scale production effectively.
Best Practices for Swiss Machining Success
To fully leverage the precision and efficiency of Swiss-type lathes, manufacturers must implement best practices in tooling selection, programming, and maintenance. Proper execution in these areas can significantly impact machine performance, part quality, and overall productivity.
Optimizing Tooling Selection and Management
The right tooling is critical for maintaining accuracy, reducing tool wear, and minimizing cycle times. To optimize tooling for Swiss machining:
- Use High-Performance Cutting Tools: Swiss lathes operate at high spindle speeds with tight tolerances, making carbide and coated tools ideal for longevity and precision.
- Leverage Modular Tooling Systems: Quick-change toolholders reduce setup times and allow for efficient tool swaps, minimizing machine downtime.
- Monitor Tool Wear Proactively: Anticipate tool wear according to frequency of use to help prevent premature tool failure, ensuring consistent part quality.
- Choose the Right Coolant and Lubrication: Proper coolant selection and delivery extend tool life, improve chip evacuation, and enhance surface finishes.
Programming Tips for Multi-Axis Swiss Machining
Swiss machines are highly complex, requiring precise programming strategies:
- Use Simulation Software: Running program simulations before machining helps identify potential collisions, reducing setup errors and scrap rates. This also helps optimize toolpaths.
- Master Synchronous Machining: Coordinating the main and sub-spindle operations reduces idle time and boosts throughput.
- Balance Cutting Forces: Distributing tool engagement evenly prevents deflection and improves surface finish, especially when machining small-diameter parts.
Conduct Regular Maintenance and Troubleshooting to Prevent Downtime
Regular maintenance is essential for maximizing machine uptime and ensuring precision over long production runs. Here are some ways to ensure Swiss-type lathes stay in top condition:
- Keep Guide Bushings and Collets Clean: Contaminants in these components can cause dimensional inconsistencies and premature wear.
- Check Alignment and Spindle Runout Regularly: Misalignment leads to part inaccuracies and excessive tool wear. Regular inspections help maintain peak performance.
- Schedule Preventative Maintenance: Following manufacturer-recommended maintenance schedules minimizes unexpected breakdowns and costly repairs.
By focusing on proper tooling, precise programming, and diligent maintenance, manufacturers can increase efficiency, extend machine lifespan, and maintain top-tier part quality in Swiss machining operations.
Improving Part Production with Swiss Machining
For manufacturers looking to increase profitability while maintaining accuracy and precision for small part production, Swiss machining is the ideal solution. These machines combine advanced design, multi-axis capabilities, and live tooling to deliver exceptional accuracy, repeatability, and efficiency.
Whether producing tiny medical screws or intricate aerospace components, Nomura DS Swiss-type lathes ensure every part meets exact specifications. To start improving part production, reach out to the team at Nomura DS to get a quote for a Swiss-type lathe that best fits your needs!
