NN-20J3XB Type C

NN-20J3XB Type C

J Series

Starting at $208,600

The NN-20J3XB Type C is an extremely ridged and capable Swiss-type machine with a fully programmable B-axis, 0-135°, on the main spindle and an additional fully programmable B-axis, 0-90°, on the sub spindle. Both are fully supported top and bottom and can run simultaneously. Both the main and sub spindles sit atop a full base casting, have onboard chillers, and run to a maximum 10,000 RPM, while the live tooling can run at 6,000 RPM.

The NN-20J3XB Type C has an expansive tooling package and an extremely powerful, user-friendly Mitsubishi M80 control. Standard features include: MVT (Micro Vibration Turning), polar, cylindrical, and helical interpolation, variable lead threading, eccentric turning, parts conveyor, and more.

20mm

Max Stock Diameter

5

Main Spindle Axes

5

Back Spindle Axes

Product Overview

Ready for anything!

  • B-axis programmable to 0-135°
  • 0-90° programmable B-axis on sub

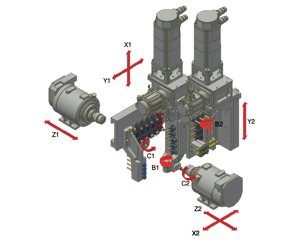

  • Expansive tooling layout
  • Horizontal tool post for chip evacuation
  • Dovetail structure for rigidity
NN-20J3XB Type C Overview
NomuraDS_Swiss_Parts (1)

Need High-Precision, Complex Parts? Look No Further Than Nomura-DS Turning Machines.

Unmatched Precision & Repeatability: Produce intricate components with incredibly tight tolerances, perfect for medical, aerospace, and electronics industries.

Faster Production & Lower Costs: Reduce cycle times and minimize secondary processes with our multi-axis capabilities.

Unmatched Efficiency & Automation: Experience unattended, high-volume production with automatic bar feeding for continuous operation.

See it in Action: Witness the power of Nomura-DS Swiss Turning Machines!  Click to watch the video.



Specifications

General Info
Controller
Mitsubishi M80 Type A
Max. Stock Diameter
Ø 20mm
Tool Stations
Type C - 27
Axis Rapid Feed Rate
30 m/min
Spindle
Speed
10,000 RPM
Main Spindle Axes
5
Back Spindle Axes
Type C - 5
Power
3.7/1.5kW
