![DST-40DL](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/NOMURA%20DS/NOMURA%20DS%20MILLING/DST-40DL/NDS_M_DST40L_MACHINE.png?length=300&name=NDS_M_DST40L_MACHINE.png)
DST-40DL
DST Series

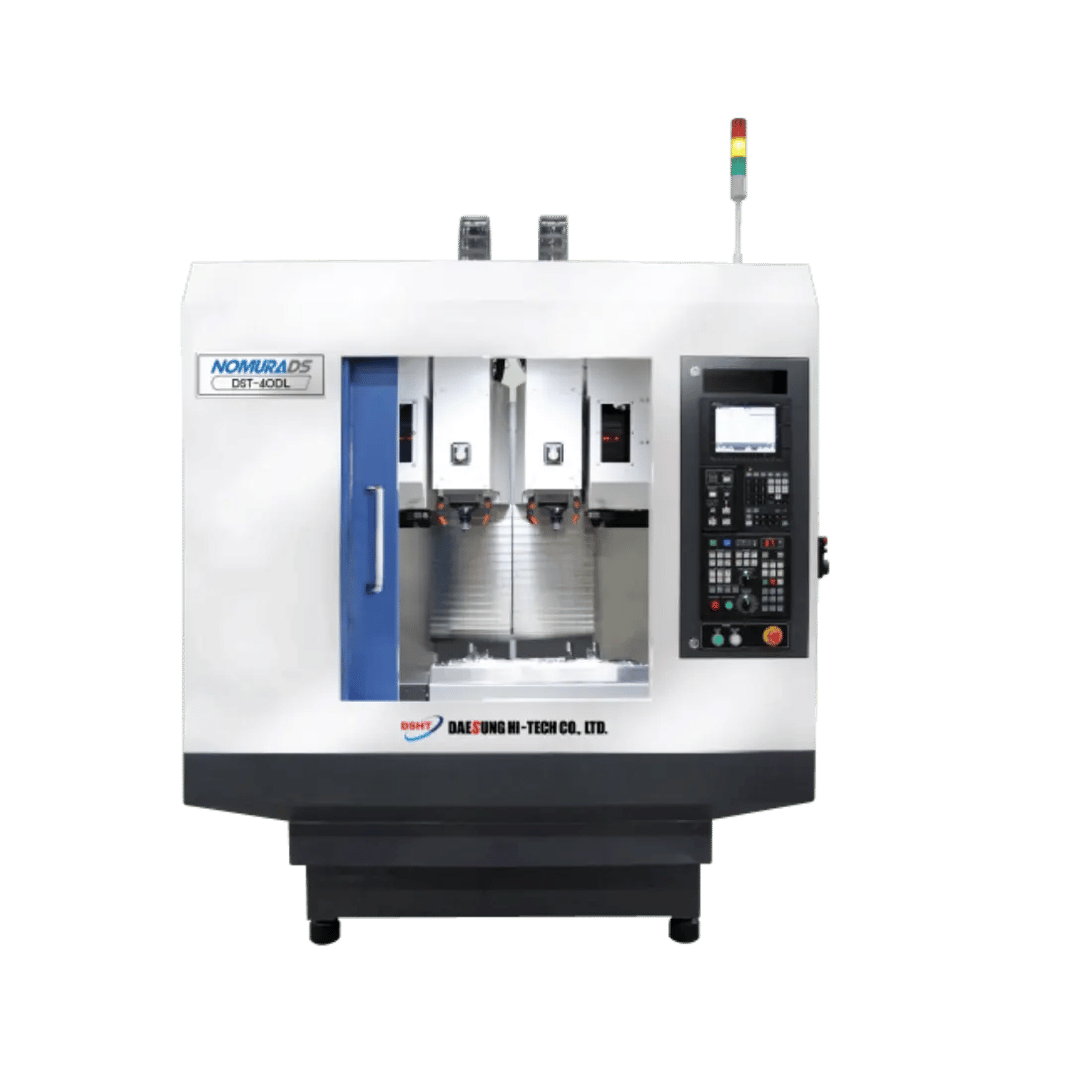

The DST-40DL is a dual-spindle compact machining center, equivalent to two machines in a single footprint. Its two-head construction allows independent offsets and synchronized operations of the Z axis and W axis, resulting in the ability to produce two products in a single operation and a short loading/unloading time.
30Taper |
10HP Spindle |
15kRPM |
Product Overview

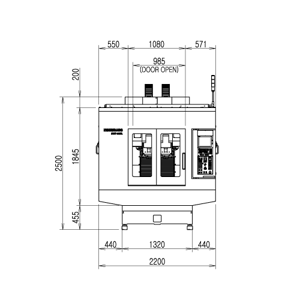

![DST-40DL Overview](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURA%20DS%20MILLING/DST-40DL/DST-40DL_LAYOUT1.png?length=300&name=DST-40DL_LAYOUT1.png)

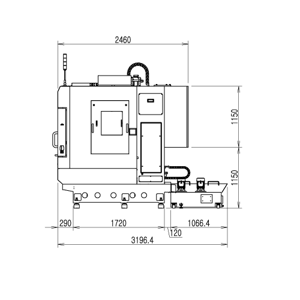

![DST-40DL Overview](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURA%20DS%20MILLING/DST-40DL/DST-40DL_LAYOUT2.png?length=300&name=DST-40DL_LAYOUT2.png)

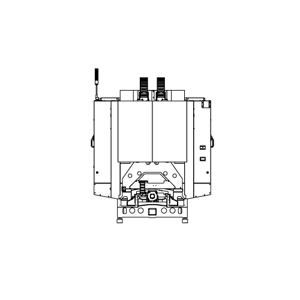

![DST-40DL Overview](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURA%20DS%20MILLING/DST-40DL/DST-40DL_LAYOUT3.png?length=300&name=DST-40DL_LAYOUT3.png)
The DST-40DL is a dual-spindle drill tap, which makes it equivalent to two machines in a single footprint. Its 2-head construction allows independent off-sets and synchronized operations of the Z axis and W axis, resulting in the ability to produce two products in a single operation as well as a short loading/unloading time.
![pm-last-longer](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURADS%20PARTS/NOMURADS%20MILLING%20PARTS/pm-last-longer.png?width=300&name=pm-last-longer.png)
Nomura DS Machines for Every Industry
CNC machines are used in nearly every application. Discover how Nomura DS machining can enhance your production and boost efficiency in your industry.
Resources |
Support |
Get the knowledge you need to run your operation more smoothly and profitably. Access industry case studies, manuals and more. |
Keep your machine up and running with unmatched technical service and support. |
Specifications
General Info
Floor Space
86.7 x 96.9 in
Table Size
41.73 x 15.75 in
Controller
Mitsubishi M80
Tool Stations
20 x 2
Spindle
Speed
15,000 RPM plus optional RPM (24,000)
Power
10 HP
Taper
30 - BBT30 with face contact
Travel
Travel (X, Y, Z)
28.35 x 15.75 (+7.87) x 18.9 in
Rapid Traverse
2,362.2 ipm
