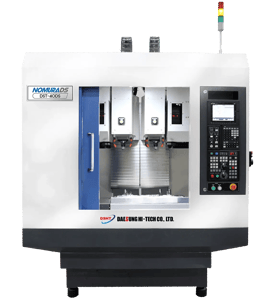

![DST-40DS](https://f.hubspotusercontent20.net/hub/139128/hubfs/.nomura/images/machines/dst40ds.png?length=300&name=dst40ds.png)

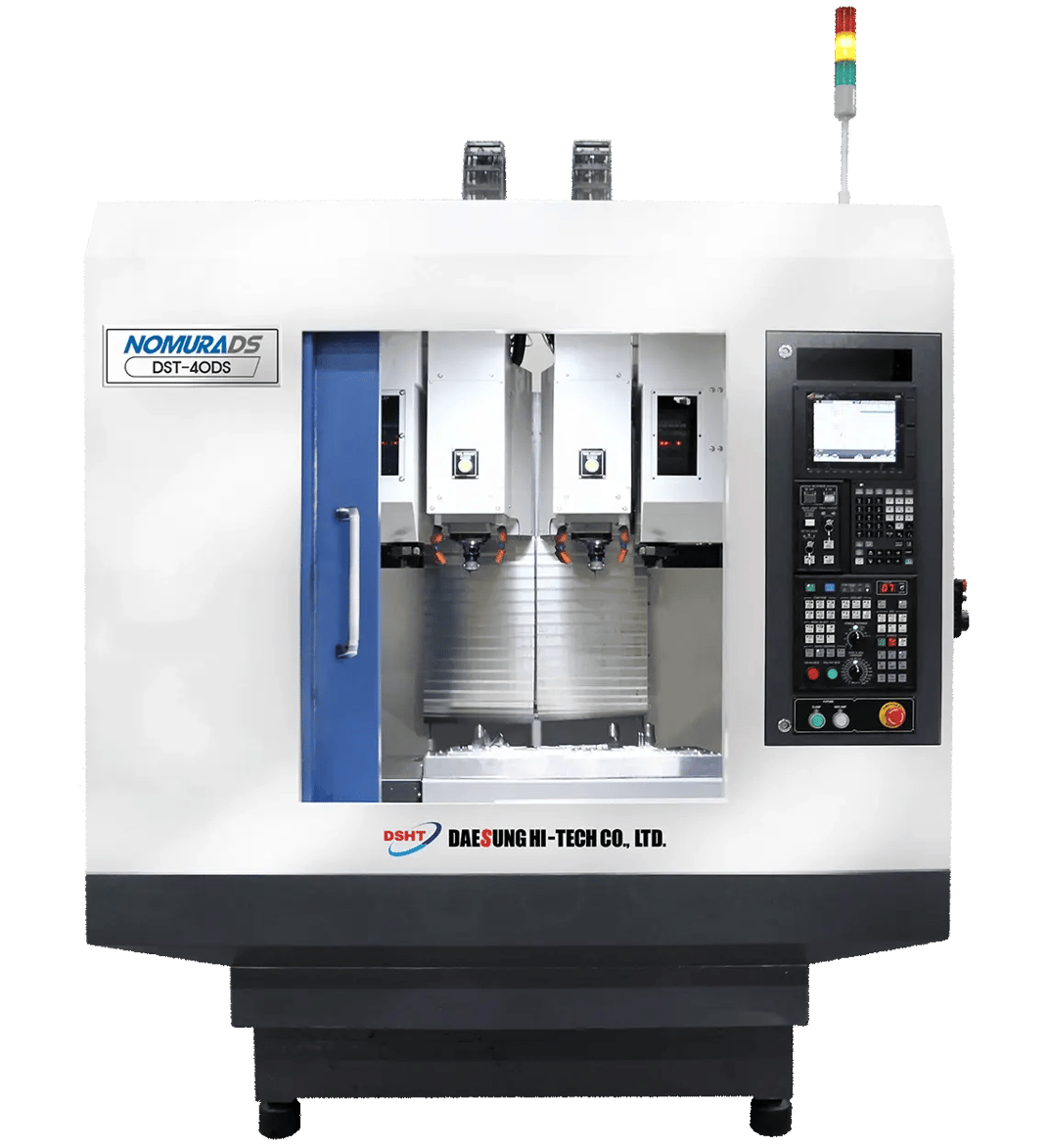

DST-40DS
DST Series
The DST-40DS is a dual-spindle drill tap, which makes it equivalent to two machines in a single footprint. Its 2-head construction allows independent off-sets and synchronized operations of the Z axis and W axis, resulting in the ability to produce two products in a single operation as well as a short loading/unloading time.
30Taper |
10HP Spindle |
15kRPM |
Product Overview

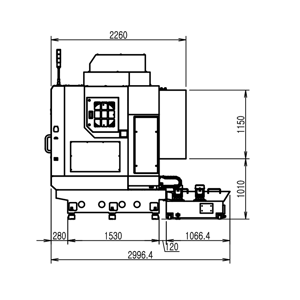

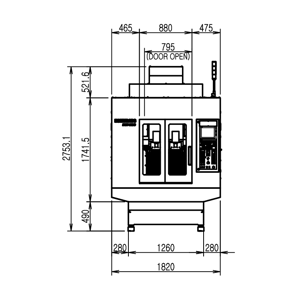

![DST-40DS Overview](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomura/nomuraDT/images/machines/dst-40ds/DST-40DS_LAYOUT1.png?length=300&name=DST-40DS_LAYOUT1.png)
![DST-40DS Overview](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomura/nomuraDT/images/machines/dst-40ds/DST-40DS_LAYOUT2.png?length=300&name=DST-40DS_LAYOUT2.png)
![DST-40DS Overview](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomura/nomuraDT/images/machines/dst-40ds/DST-40DS_LAYOUT3.png?length=300&name=DST-40DS_LAYOUT3.png)
The DST-40DS is a dual-spindle drill tap, which makes it equivalent to two machines in a single footprint. Its 2-head construction allows independent off-sets and synchronized operations of the Z axis and W axis, resulting in the ability to produce two products in a single operation as well as a short loading/unloading time.
![Factory worker in a hard hat is moving a metal detail _168980864-min](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/Stock%20Images/Factory%20worker%20in%20a%20hard%20hat%20is%20moving%20a%20metal%20detail%20_168980864-min.jpeg?width=300&name=Factory%20worker%20in%20a%20hard%20hat%20is%20moving%20a%20metal%20detail%20_168980864-min.jpeg)
Nomura DS Machines for Every Industry
CNC machines are used in nearly every application. Discover how Nomura DS machining can enhance your production and boost efficiency in your industry.
Resources |
Support |
Get the knowledge you need to run your operation more smoothly and profitably. Access industry case studies, manuals and more. |
Keep your machine up and running with unmatched technical service and support. |
Specifications
General Info
Floor Space
71.7 x 89.0 in

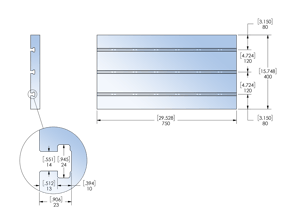

Table Size
29.53 x 15.75 in
Controller
Mitsubishi M80
Tool Stations
24 x 2
Spindle
Speed
15,000 RPM plus optional RPM (24,000)
Power
10 HP
Taper
30 - BBT30 with face contact
Travel
Travel (X, Y, Z)
21.26 x 15.75 x 15.75 in
Rapid Traverse
2,362.2 ipm
