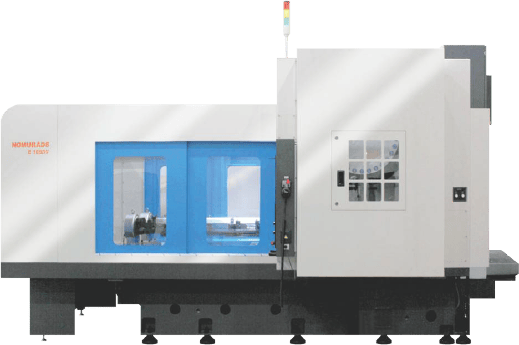

E-185DVM
The E-185DVM is a 40-taper dual-spindle bridge mill design for machining longer parts. It is equivalent to two machines in a single footprint. Its 2-head construction allows independent offsets and synchronized operations of the Z axis and W axis, resulting in the ability to produce two products in a single operation as well as a short loading/unloading time.
40Taper |
25HP Spindle |
12kRPM |
Product Overview
The E-185DVM is a 40-taper dual-spindle bridge mill design for machining longer parts. It is equivalent to two machines in a single footprint. Its 2-head construction allows independent offsets and synchronized operations of the Z axis and W axis, resulting in the ability to produce two products in a single operation as well as a short loading/unloading time.
![pm-last-longer](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURADS%20PARTS/NOMURADS%20MILLING%20PARTS/pm-last-longer.png?width=300&name=pm-last-longer.png)
Nomura DS Machines for Every Industry
CNC machines are used in nearly every application. Discover how Nomura DS machining can enhance your production and boost efficiency in your industry.
Resources |
Support |
Get the knowledge you need to run your operation more smoothly and profitably. Access industry case studies, manuals and more. |
Keep your machine up and running with unmatched technical service and support. |
Specifications
General Info
Floor Space
132.29 x 194.29 in
Table Size
70.87 x 35.43"
Controller
Mitsubishi M80
Tool Stations
30 x 2
Spindle
Speed
12,000 RPM
Power
25 HP
Taper
40 - CT40
Travel
Travel (X, Y, Z)
20.47(X, U) x 72.83 x 15.75(Z, W) in
Rapid Traverse
1889.7(X, U) x 1417.3 x 1889.7(Z, W) ipm
