![E-50DM](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURA%20DS%20MILLING/E-50DM/NDSW_M_E50DM.png?length=300&name=NDSW_M_E50DM.png)
E-50DM

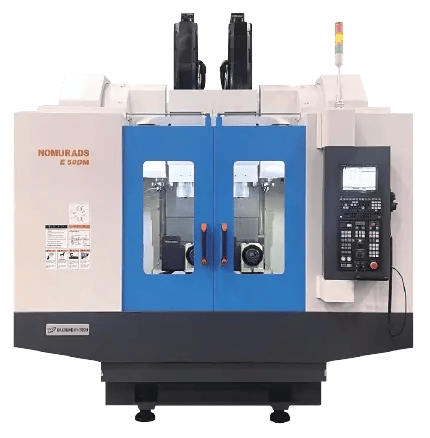

The E-50DM is a dual-spindle 40-taper vertical machining center, which makes it equivalent to two machines in a single footprint. Its 2-head construction allows independent off-sets and synchronized operations of the Z axis and W axis, resulting in the ability to produce two products in a single operation as well as a short loading/unloading time.
30Taper |
25HP Spindle |
12kRPM |
Product Overview

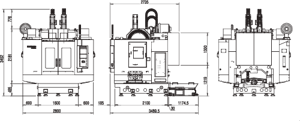

The E-50DM is a dual-spindle 40-taper vertical machining center, which makes it equivalent to two machines in a single footprint. Its 2-head construction allows independent off-sets and synchronized operations of the Z axis and W axis, resulting in the ability to produce two products in a single operation as well as a short loading/unloading time.![E-50DM Overview](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURA%20DS%20MILLING/E-50DM/NDSW_M_E50DM_LAYOUT.png?length=300&name=NDSW_M_E50DM_LAYOUT.png)
![pm-last-longer](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURADS%20PARTS/NOMURADS%20MILLING%20PARTS/pm-last-longer.png?width=300&name=pm-last-longer.png)
Nomura DS Machines for Every Industry
CNC machines are used in nearly every application. Discover how Nomura DS machining can enhance your production and boost efficiency in your industry.
Resources |
Support |
Get the knowledge you need to run your operation more smoothly and profitably. Access industry case studies, manuals and more. |
Keep your machine up and running with unmatched technical service and support. |
Specifications
General Info
Floor Space
110.25 x 107.68 in
Table Size
47.24 x 20.47 in
Controller
Mitsubishi M80
Tool Stations
30 x 2
Spindle
Speed
12,000 RPM
Power
25 HP
Taper
40 - CT40
Travel
Travel (X, Y, Z)
29.53 x 20.47 x 21.65 in
Rapid Traverse
1889.7 ipm
