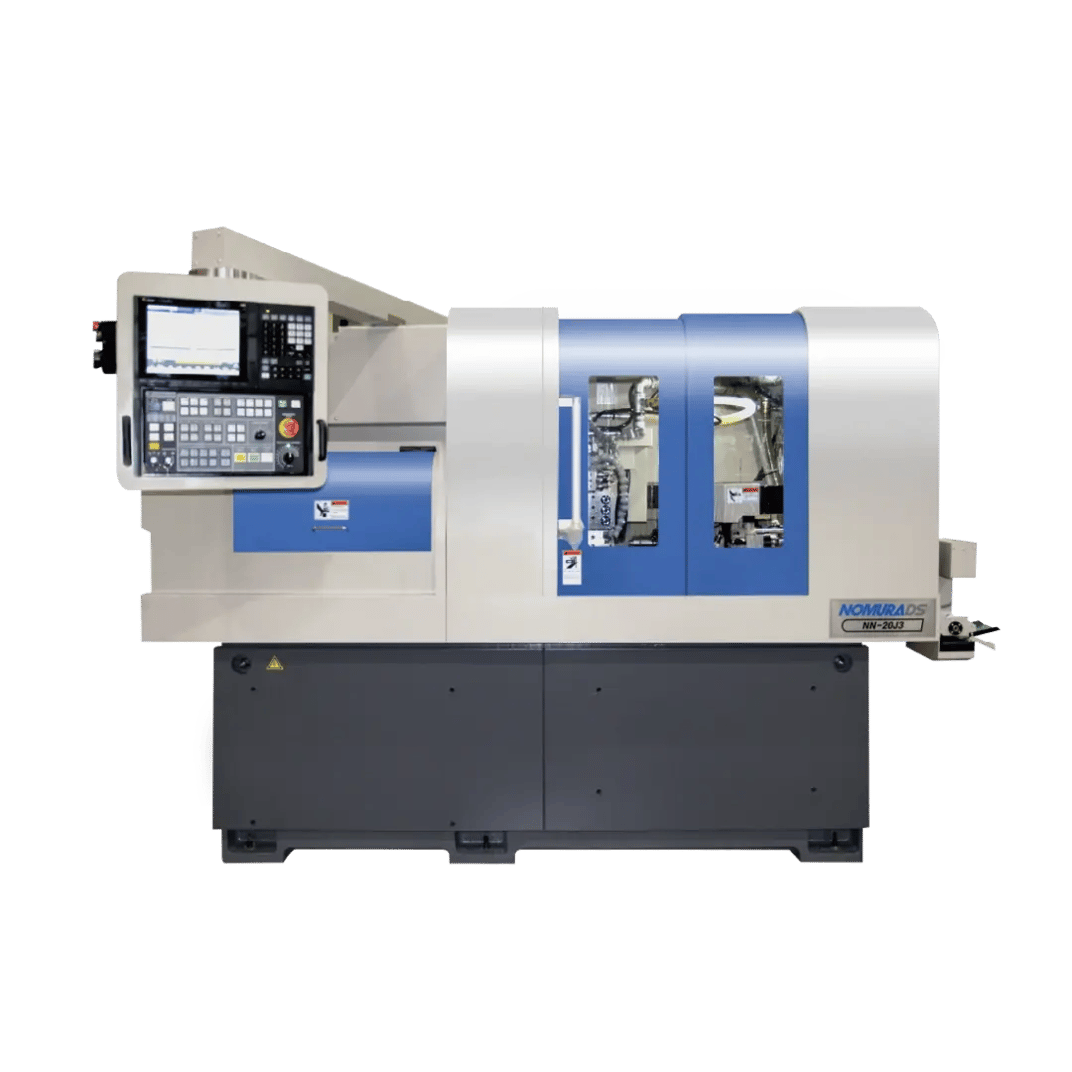

NN-20J3
J Series
The 20J3 is a highly-flexible machine with a sub-spindle that comes standard with 6 OD tools, 4 static front/back drilling stations and 5 live cross drill/mill spindles for the main spindle. The sub-spindle has 3 static back drilling tools, 2 OD tools, 3 live cross drill/mill tools and 3 live off-center drill/mill tools. Both the main and back spindles come standard with a .001 degree C-Axis.
20mmMax Stock Diameter |
4Main Spindle Axes |
4Back Spindle Axes |
Product Overview
Perfect for complex parts

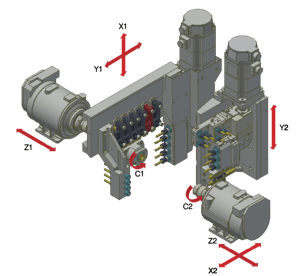

- Expansive tooling layout
- Horizontal tool post for chip evacuation
- Dovetail structure for rigidity
- Expanded special tool options
![NN-20J3 Overview](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/NOMURA%20DS/NOMURA%20DS%20TURNING/NN-20J3/NOMURA_NN-10_20J3_3D-TOOL-LAYOUT_IMG-2.png?length=300&name=NOMURA_NN-10_20J3_3D-TOOL-LAYOUT_IMG-2.png)
![NomuraDS_Swiss_Parts (1)](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURADS%20PARTS/NOMURADS%20TURNING%20PARTS/NomuraDS_Swiss_Parts%20(1).jpg?width=300&name=NomuraDS_Swiss_Parts%20(1).jpg)

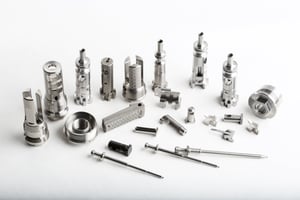

Need High-Precision, Complex Parts? Look No Further Than Nomura-DS Turning Machines.
Unmatched Precision & Repeatability: Produce intricate components with incredibly tight tolerances, perfect for medical, aerospace, and electronics industries.
Faster Production & Lower Costs: Reduce cycle times and minimize secondary processes with our multi-axis capabilities.
Unmatched Efficiency & Automation: Experience unattended, high-volume production with automatic bar feeding for continuous operation.
See it in Action: Witness the power of Nomura-DS Swiss Turning Machines! Click to watch the video.
Specifications
General Info
Controller
Mitsubishi M80 Type A
Max. Stock Diameter
Ø 20mm
Tool Stations
30
Axis Rapid Feed Rate
30 m/min
Spindle
Speed
10,000 RPM
Main Spindle Axes
4
Back Spindle Axes
4
Power
3.7/1.5kW
