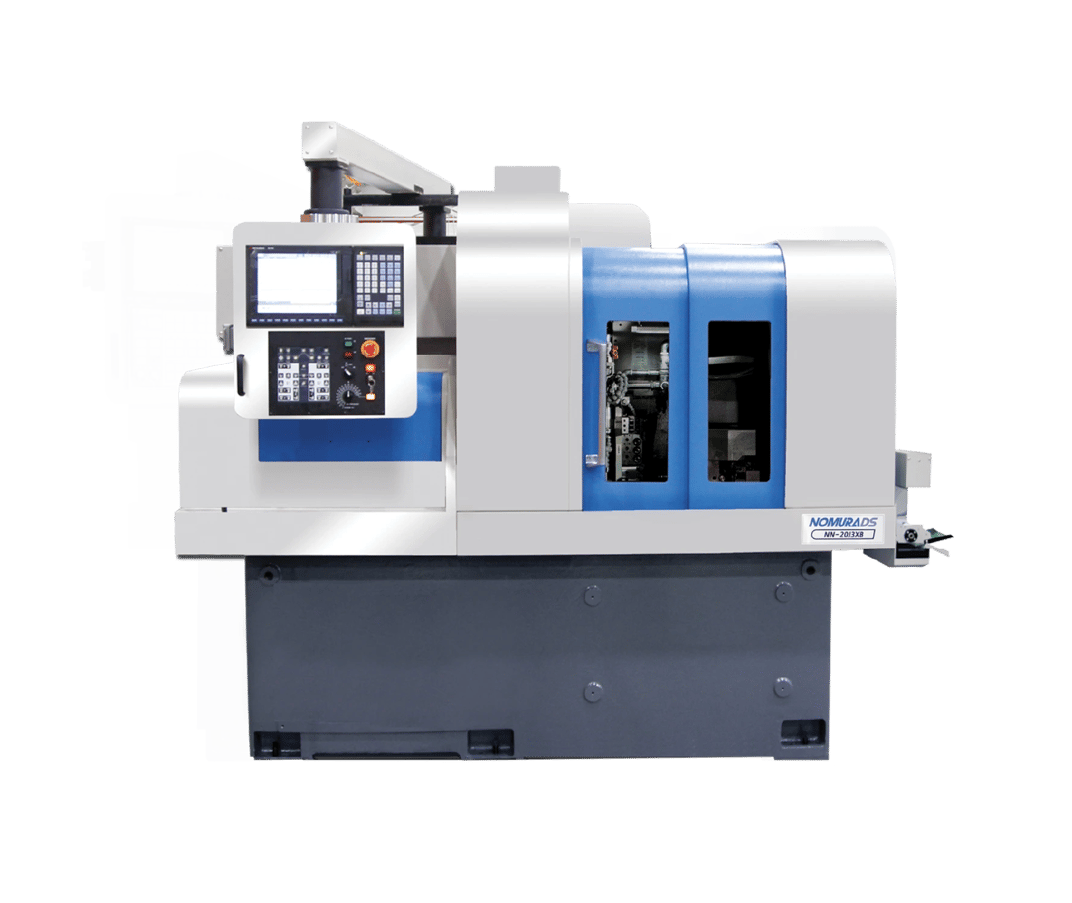

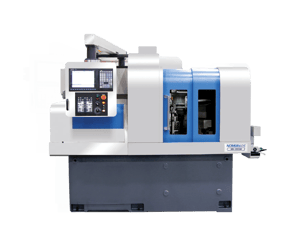

NN-20J3XB Type A
J Series
Starting at $189,800
The NN-20J3XB Type A is an extremely ridged and capable Swiss-type machine with a fully programmable B-axis, 0-135°, on the main spindle. The five live tools on the B-axis are fully supported top and bottom. Both the main and sub spindles sit atop a full base casting, have onboard chillers, and run to a maximum 10,000 RPM, while the live tooling can run at 6,000 RPM. The C-axis can be programmed to .0001 degree increments.
The NN-20J3XB Type A has an expansive tooling package and an extremely powerful, user-friendly Mitsubishi M80 control. Standard features include: MVT (Micro Vibration Turning) oscillation cutting for chip control, polar, cylindrical, and helical interpolation, variable lead threading, eccentric turning, parts conveyor, and more.
20mmMax Stock Diameter |
5Main Spindle Axes |
4Back Spindle Axes |
Product Overview
Ready for anything!
- B-axis programmable to 0-135°

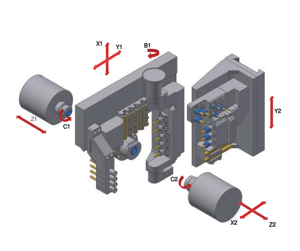

- Expansive tooling layout
- Horizontal tool post for chip evacuation
- Dovetail structure for rigidity
.jpg?width=300&name=NomuraDS_Swiss_Parts%20(1).jpg)
Need High-Precision, Complex Parts? Look No Further Than Nomura-DS Turning Machines.
Unmatched Precision & Repeatability: Produce intricate components with incredibly tight tolerances, perfect for medical, aerospace, and electronics industries.
Faster Production & Lower Costs: Reduce cycle times and minimize secondary processes with our multi-axis capabilities.
Unmatched Efficiency & Automation: Experience unattended, high-volume production with automatic bar feeding for continuous operation.
See it in Action: Witness the power of Nomura-DS Swiss Turning Machines! Click to watch the video.
