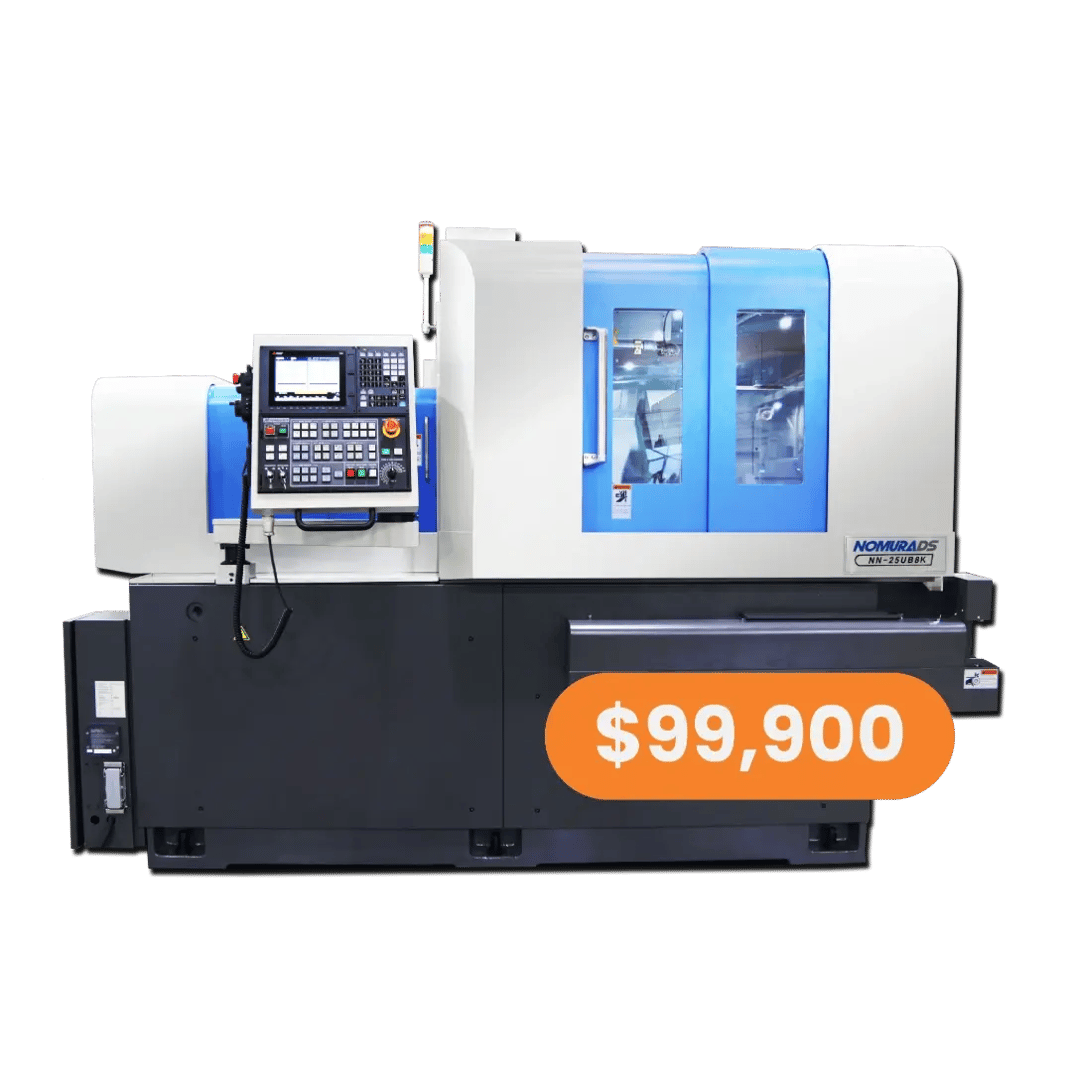

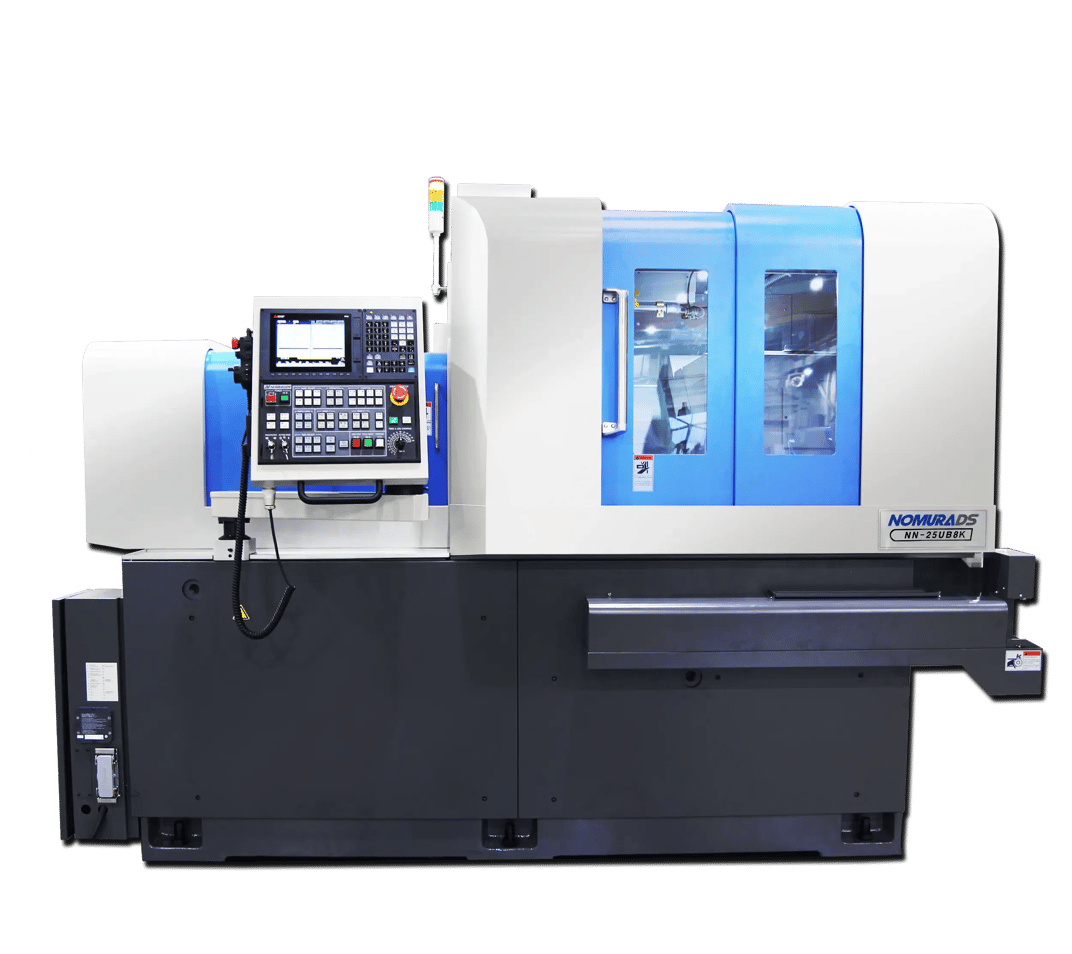

NN-25UB8K
UB Series
The 25UB8K is a high-performance machine at an economical price and capability than others in its product class. Without reduction of its specs or content, it has been upgraded with increased power and torque of the cross-drilling motors and even comes standard with Micro Vibration Technology (MVT).
25mmMax Stock Diameter |
4Main Spindle Axes |
3Back Spindle Axes |
Product Overview

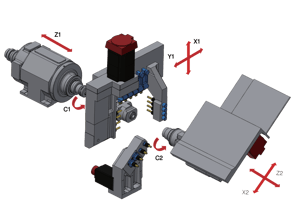

- Compact tool layout for efficient movement
- Expanded tool options
- Eccentric turning on main and sub
- Guide bush or non-guide bush mode
- Reasonably priced
![NN-25UB8K Overview](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/NOMURA%20DS/NOMURA%20DS%20TURNING/NN-25UB8K/NOMURA_NN-20_25UB8_3D-TOOL-LAYOUT_IMG.png?length=300&name=NOMURA_NN-20_25UB8_3D-TOOL-LAYOUT_IMG.png)
![NomuraDS_Swiss_Parts (1)](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURADS%20PARTS/NOMURADS%20TURNING%20PARTS/NomuraDS_Swiss_Parts%20(1).jpg?width=300&name=NomuraDS_Swiss_Parts%20(1).jpg)
Need High-Precision, Complex Parts? Look No Further Than Nomura-DS Turning Machines.
Unmatched Precision & Repeatability: Produce intricate components with incredibly tight tolerances, perfect for medical, aerospace, and electronics industries.
Faster Production & Lower Costs: Reduce cycle times and minimize secondary processes with our multi-axis capabilities.
Unmatched Efficiency & Automation: Experience unattended, high-volume production with automatic bar feeding for continuous operation.
See it in Action: Witness the power of Nomura-DS Swiss Turning Machines! Click to watch the video.
Specifications
General Info
Controller
Mitsubishi M80 Type A
Max. Stock Diameter
Ø 25mm
Tool Stations
21
Axis Rapid Feed Rate
30 m/min
Spindle
Speed
10,000 RPM
Main Spindle Axes
4
Back Spindle Axes
3
Power
3.7/1.5kW
