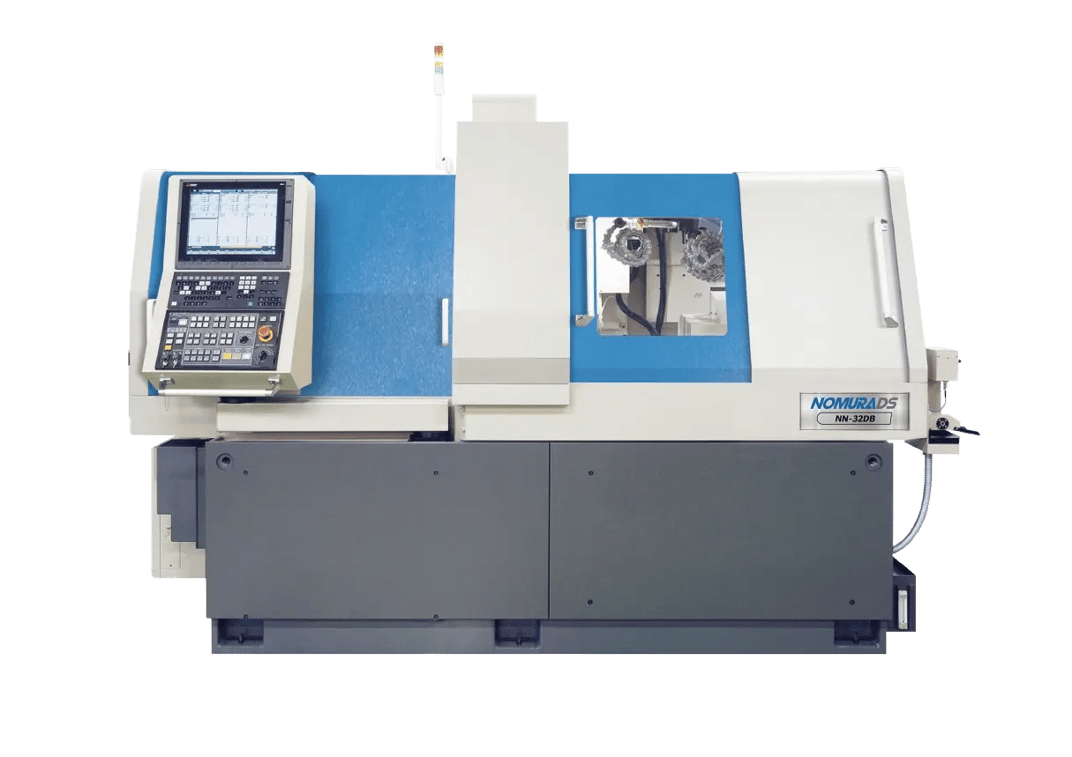

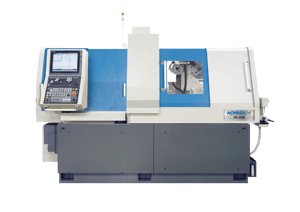

NN-32DB

NN-32DB

DB Series

Starting at $275,000

The 32DB is specialized for difficult-to-cut parts. With increased tooling, it has the best tool layout among equivalent models. Additionally, the 32DB machine can both pinch turn and pinch mill, further reducing your cut time.

32mm

Max Stock Diameter

6

Main Spindle Axes

4

Back Spindle Axes

Product Overview

  • Flagship machine for difficult to cut parts
  • Opposing tooling layout for pinch turning and pinch milling
  • Guide bush or non-guide bush mode
NN-32DB Overview
NomuraDS_Swiss_Parts (1)

Need High-Precision, Complex Parts? Look No Further Than Nomura-DS Turning Machines.

Unmatched Precision & Repeatability: Produce intricate components with incredibly tight tolerances, perfect for medical, aerospace, and electronics industries.

Faster Production & Lower Costs: Reduce cycle times and minimize secondary processes with our multi-axis capabilities.

Unmatched Efficiency & Automation: Experience unattended, high-volume production with automatic bar feeding for continuous operation.

See it in Action: Witness the power of Nomura-DS Swiss Turning Machines!  Click to watch the video.



Specifications

General Info
Controller
Mitsubishi M830
Max. Stock Diameter
Ø 32mm
Tool Stations
36
Axis Rapid Feed Rate
28m/min
Spindle
Speed
8,000 RPM
Main Spindle Axes
6
Back Spindle Axes
4
Power
7.5/3.7kW
