NN-32JXB

NN-32JXB

The 32JXB turning center offers a highly versatile tooling layout including a 135 degree B-axis on the main spindle, the latest Mitsubishi M80 control, and the ability to switch from guide bushing to non-guide bushing mode for maximum machining flexibility and capability.

32mm

Max Stock Diameter

4

Main Spindle Axes

4

Back Spindle Axes

Product Overview

Ready for anything!

  • B-axis programmable to 0-135°

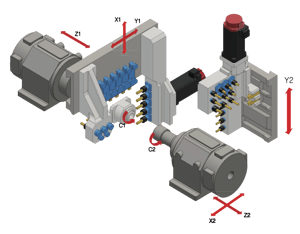

  • Expansive tooling layout
  • Horizontal tool post for chip evacuation
  • Dovetail structure for rigidity
NN-32JXB Overview
NomuraDS_Swiss_Parts (1)

Need High-Precision, Complex Parts? Look No Further Than Nomura-DS Turning Machines.

Unmatched Precision & Repeatability: Produce intricate components with incredibly tight tolerances, perfect for medical, aerospace, and electronics industries.

Faster Production & Lower Costs: Reduce cycle times and minimize secondary processes with our multi-axis capabilities.

Unmatched Efficiency & Automation: Experience unattended, high-volume production with automatic bar feeding for continuous operation.

See it in Action: Witness the power of Nomura-DS Swiss Turning Machines!  Click to watch the video.



Specifications

General Info
Controller
Mitsubishi M80 Type A
Max. Stock Diameter
Ø 32mm
Tool Stations
31
Axis Rapid Feed Rate
30 m/min
Spindle
Speed
8,000 RPM
Main Spindle Axes
5
Back Spindle Axes
4
Power
7.5/3.7kW
