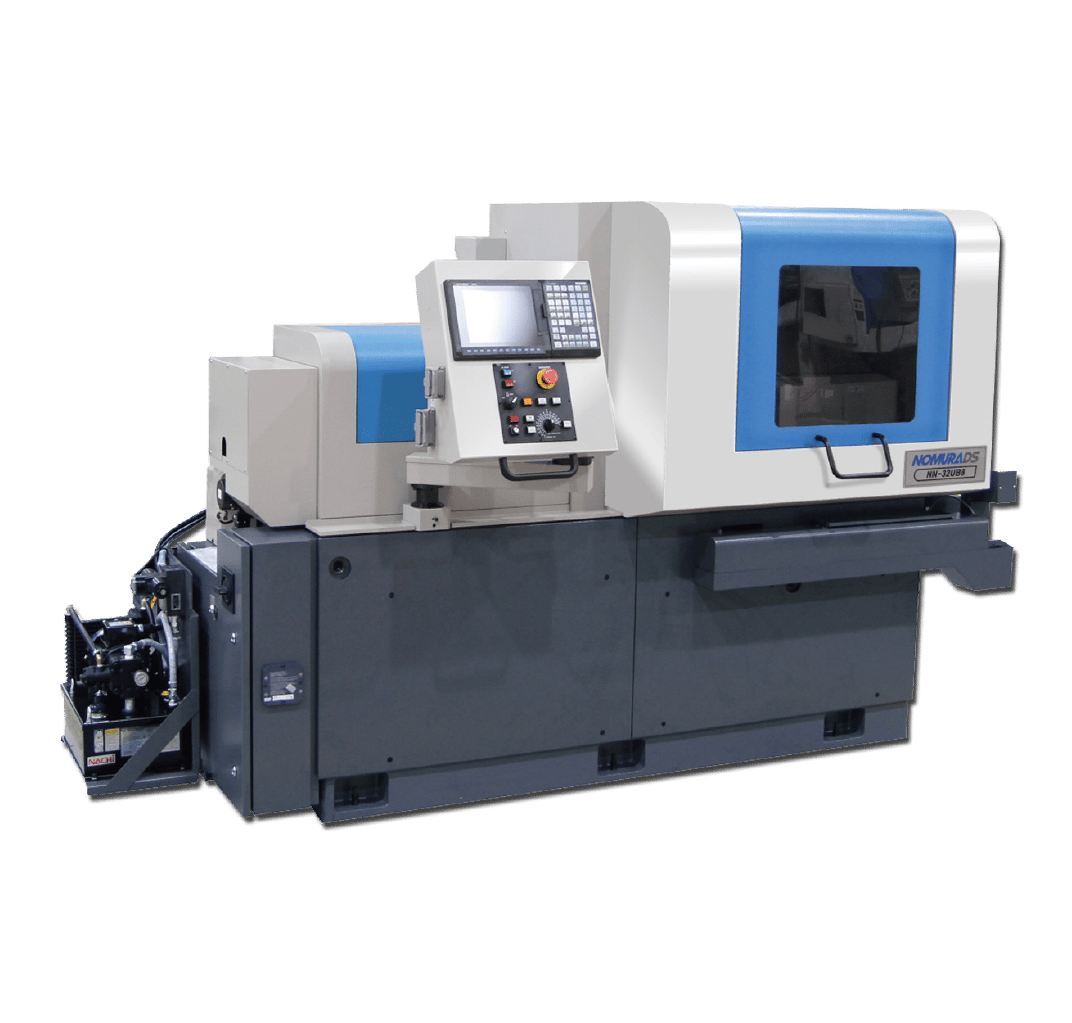

NN-32UB8K

NN-32UB8K

UB Series

Starting at $168,800

The 32UB8K has a horizontal tool post, dovetail structure, and an efficient tool layout. The 32UB8 offers shortened cycle time, high-efficiency at a reasonable price. The balanced tool layout can minimize cycle time.

32mm

Max Stock Diameter

4

Main Spindle Axes

3

Back Spindle Axes

Product Overview

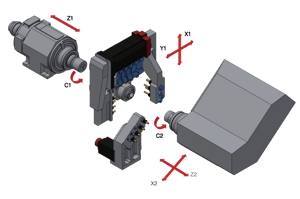

  • Compact tool layout for efficient movement
  • Horizontal tool post, dovetail structure
  • Reasonably priced

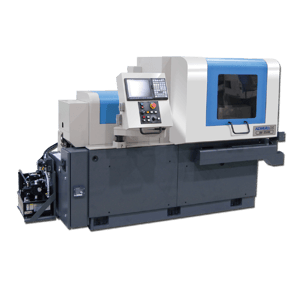

NN-32UB8K Overview
NomuraDS_Swiss_Parts (1)

Need High-Precision, Complex Parts? Look No Further Than Nomura-DS Turning Machines.

Unmatched Precision & Repeatability: Produce intricate components with incredibly tight tolerances, perfect for medical, aerospace, and electronics industries.

Faster Production & Lower Costs: Reduce cycle times and minimize secondary processes with our multi-axis capabilities.

Unmatched Efficiency & Automation: Experience unattended, high-volume production with automatic bar feeding for continuous operation.

See it in Action: Witness the power of Nomura-DS Swiss Turning Machines!  Click to watch the video.



Specifications

General Info
Controller
Mitsubishi M80 Type A
Max. Stock Diameter
Ø 32mm
Tool Stations
21
Axis Rapid Feed Rate
30 m/min
Spindle
Speed
8,000 RPM
Main Spindle Axes
4
Back Spindle Axes
3
Power
5.5/3.7kW
