![NN-38J](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURA%20DS%20TURNING/NN-38J/NDS_T_NN38J_RESIZED.png?length=300&name=NDS_T_NN38J_RESIZED.png)

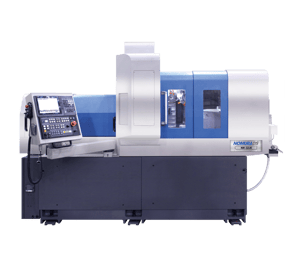

NN-38J
J Series
The 38J has the best tool layout among equivalent models. A highly capable tool layout, both front and back spindles. With the optional non-guide bushing mode, the max machining diameter can be increased to 42mm diameter.
38mmMax Stock Diameter |
4Main Spindle Axes |
4Back Spindle Axes |
Product Overview
Perfect for complex parts.
- Expansive tooling layout
- Horizontal tool post for chip evacuation
- Dovetail structure for rigidity
- Guide bush or non-guide bush mode
![NomuraDS_Swiss_Parts (1)](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURADS%20PARTS/NOMURADS%20TURNING%20PARTS/NomuraDS_Swiss_Parts%20(1).jpg?width=300&name=NomuraDS_Swiss_Parts%20(1).jpg)
Need High-Precision, Complex Parts? Look No Further Than Nomura-DS Turning Machines.
Unmatched Precision & Repeatability: Produce intricate components with incredibly tight tolerances, perfect for medical, aerospace, and electronics industries.
Faster Production & Lower Costs: Reduce cycle times and minimize secondary processes with our multi-axis capabilities.
Unmatched Efficiency & Automation: Experience unattended, high-volume production with automatic bar feeding for continuous operation.
See it in Action: Witness the power of Nomura-DS Swiss Turning Machines! Click to watch the video.
Specifications
General Info
Controller
Mitsubishi M80 Type A
Max. Stock Diameter
Ø 38mm (OP: Ø 42mm)
Tool Stations
32
Axis Rapid Feed Rate
30 m/min
Spindle
Speed
8,000 RPM
Main Spindle Axes
4
Back Spindle Axes
4
Power
7.5/5.5kW
