![NN-38JXB](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURA%20DS%20TURNING/NN-38JXB/NOMRADS_38JXB_RESIZED.png?length=300&name=NOMRADS_38JXB_RESIZED.png)

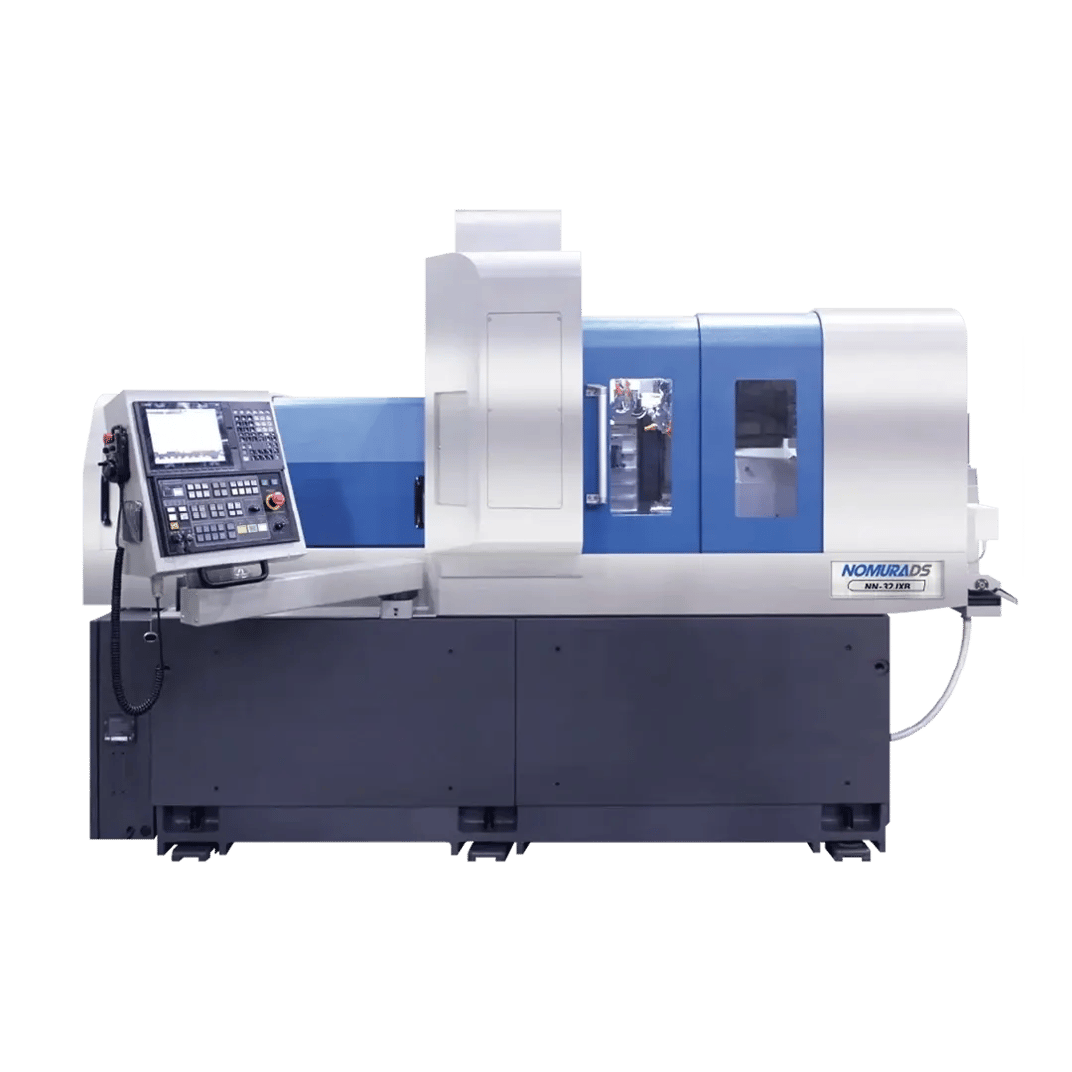

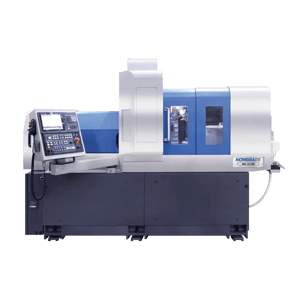

NN-38JXB
J Series
The 38JXB is a highly flexible machine that comes standard with 5 OD tools, 5 static front/back drilling stations and 5 live cross drill/mill spindles on a B-axis for the main spindle. The sub-spindle has 5 static back drilling tools, 2 OD tools, 4 live cross drill/mill tools and 5 live face drill/mill tools. Both the main and sub spindles come standard with a .001 degree C-Axis.
38mmMax Stock Diameter |
5Main Spindle Axes |
4Back Spindle Axes |
Product Overview
- B-axis programmable to 0-135°
- Expansive tooling layout
- Horizontal tool post for chip evacuation
- Dovetail structure for rigidity
![NomuraDS_Swiss_Parts (1)](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURADS%20PARTS/NOMURADS%20TURNING%20PARTS/NomuraDS_Swiss_Parts%20(1).jpg?width=300&name=NomuraDS_Swiss_Parts%20(1).jpg)
Need High-Precision, Complex Parts? Look No Further Than Nomura-DS Turning Machines.
Unmatched Precision & Repeatability: Produce intricate components with incredibly tight tolerances, perfect for medical, aerospace, and electronics industries.
Faster Production & Lower Costs: Reduce cycle times and minimize secondary processes with our multi-axis capabilities.
Unmatched Efficiency & Automation: Experience unattended, high-volume production with automatic bar feeding for continuous operation.
See it in Action: Witness the power of Nomura-DS Swiss Turning Machines! Click to watch the video.
Specifications
General Info
Controller
Mitsubishi M80 Type A
Max. Stock Diameter
Ø 38mm
Tool Stations
31
Axis Rapid Feed Rate
30 m/min
Spindle
Speed
8,000 RPM
Main Spindle Axes
5
Back Spindle Axes
4
Power
7.5/5.5kW
