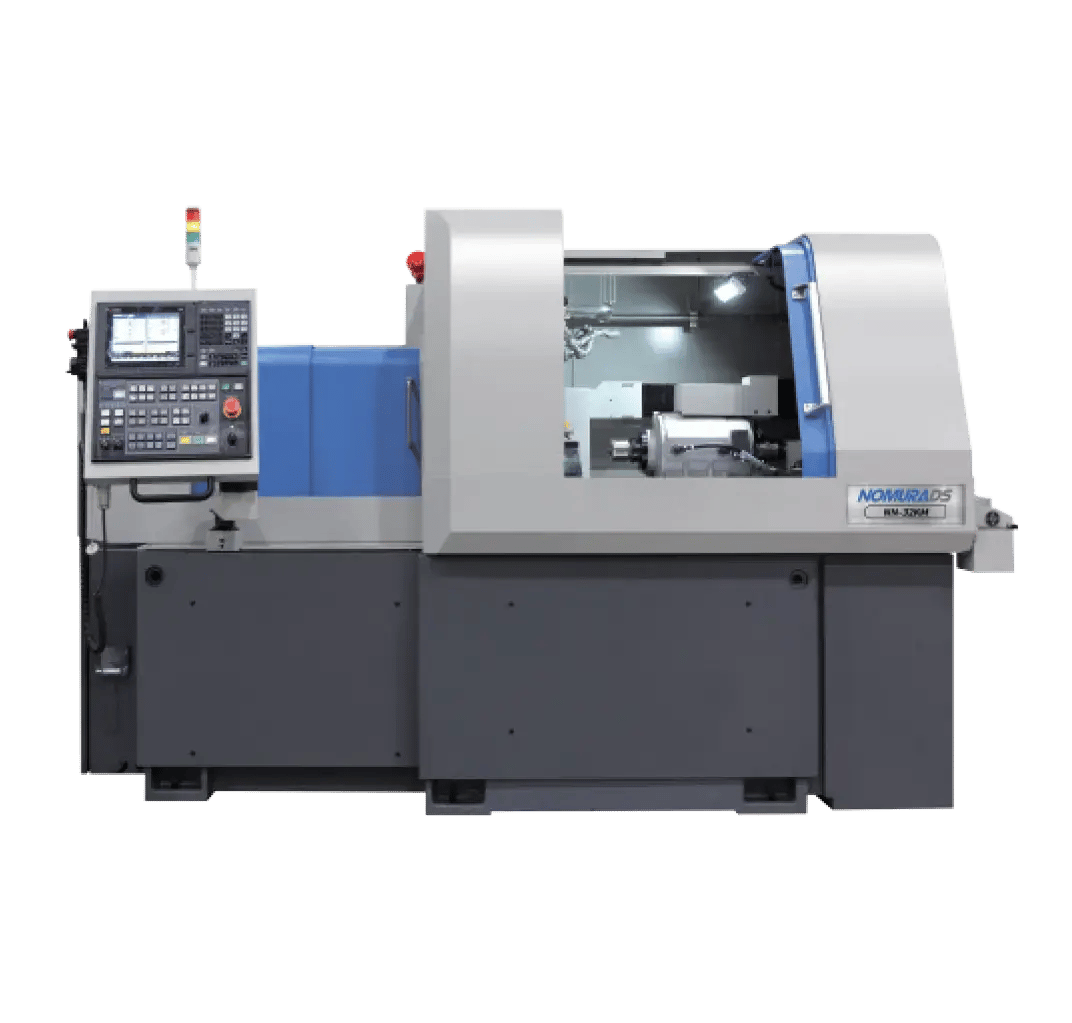

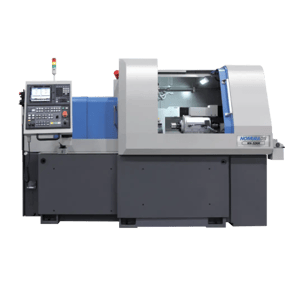

NN-38KMY

NN-38KMY

KM Series

Starting at $214,900

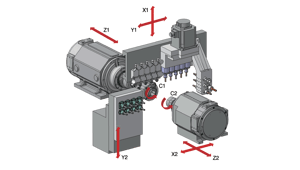

The 38KMY has the latest NC with a Mitsubishi M80 control. It has an improved tool layout for easier chip removal and minimizes thermal deformation and vibration with an integrated casting bed and dovetail structure.

38mm

Max Stock Diameter

4

Main Spindle Axes

4

Back Spindle Axes

Product Overview

  • 28 tool, high capacity layout
  • 4 live and 4 static end working on sub
  • Guide bush or non-guide bush mode
  • Mitsubishi M80 Control
NN-38KMY Overview
NomuraDS_Swiss_Parts (1)

Need High-Precision, Complex Parts? Look No Further Than Nomura-DS Turning Machines.

Unmatched Precision & Repeatability: Produce intricate components with incredibly tight tolerances, perfect for medical, aerospace, and electronics industries.

Faster Production & Lower Costs: Reduce cycle times and minimize secondary processes with our multi-axis capabilities.

Unmatched Efficiency & Automation: Experience unattended, high-volume production with automatic bar feeding for continuous operation.

See it in Action: Witness the power of Nomura-DS Swiss Turning Machines!  Click to watch the video.



Specifications

General Info
Controller
Mitsubishi M80 Type A
Max. Stock Diameter
Ø 38mm
Tool Stations
28
Axis Rapid Feed Rate
32m/min
Spindle
Speed
8,000 RPM
Main Spindle Axes
4
Back Spindle Axes
4
Power
7.5/5.5KW
