![NN-38UB8K2](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURA%20DS%20TURNING/NN-38UB8K/NDS_T_NN38UB8_MACHINE.png?length=300&name=NDS_T_NN38UB8_MACHINE.png)

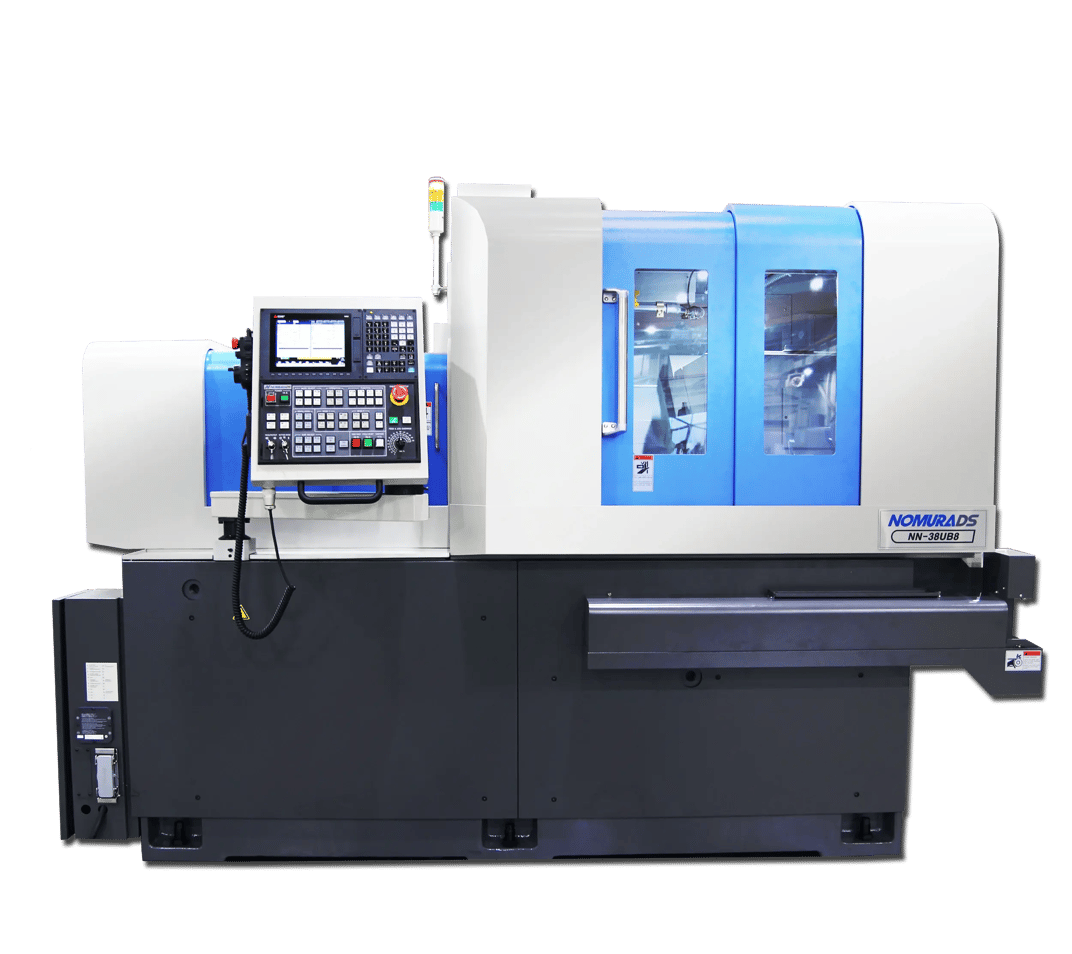

NN-38UB8K2
UB Series
The 38UB8K2 is specialized for machining high-precision and complicated shaped parts. Offering a shortened cycle time, long drill, horizontal tool post and, a dovetail structure. With the optional non-guide bushing mode, the max machining diameter can be increased to 42mm diameter.
38mmMax Stock Diameter |
4Main Spindle Axes |
3Back Spindle Axes |
Product Overview

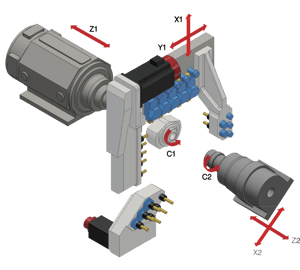

- Compact tool layout for efficient movement
- Long drill holders
- Horizontal tool post, dovetail structure
![NN-38UB8K2 Overview](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/NOMURA%20DS/NOMURA%20DS%20TURNING/NN-38UB8K/NOMURA_NN-38UB8_3D-TOOL-LAYOUT_IMG.png?length=300&name=NOMURA_NN-38UB8_3D-TOOL-LAYOUT_IMG.png)
![NomuraDS_Swiss_Parts (1)](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURADS%20PARTS/NOMURADS%20TURNING%20PARTS/NomuraDS_Swiss_Parts%20(1).jpg?width=300&name=NomuraDS_Swiss_Parts%20(1).jpg)
Need High-Precision, Complex Parts? Look No Further Than Nomura-DS Turning Machines.
Unmatched Precision & Repeatability: Produce intricate components with incredibly tight tolerances, perfect for medical, aerospace, and electronics industries.
Faster Production & Lower Costs: Reduce cycle times and minimize secondary processes with our multi-axis capabilities.
Unmatched Efficiency & Automation: Experience unattended, high-volume production with automatic bar feeding for continuous operation.
See it in Action: Witness the power of Nomura-DS Swiss Turning Machines! Click to watch the video.
Specifications
General Info
Controller
Mitsubishi M80 Type A
Max. Stock Diameter
Ø 38mm (OP: Ø 42mm)
Tool Stations
28
Axis Rapid Feed Rate
30 m/min
Spindle
Speed
8,000 RPM
Main Spindle Axes
4
Back Spindle Axes
3
Power
7.5/5.5kW
