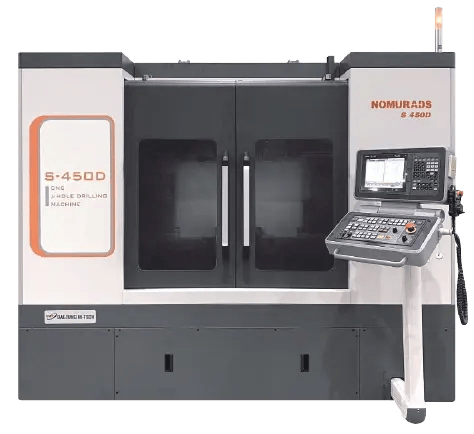

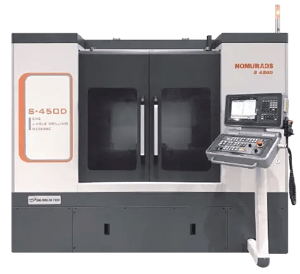

S-450D

S-450D

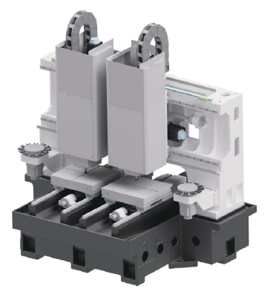

The S-450D is a HSK-E32 taper dual-spindle bridge mill design with ultrasonic spindles for micro hole machining. It is equivalent to two machines in a single footprint. Its 2-head construction allows independent offsets and synchronized operations of the Z axis and W axis, resulting in the ability to produce accurate micro holes with extreme precision and increased surface finishes.

HSK

Taper

8

HP Spindle

38k

RPM

Product Overview

S-450D Overview
S-450D Overview
The S-450D is a HSK-E32 taper dual-spindle bridge mill design with ultrasonic spindles for micro hole machining. It is equivalent to two machines in a single footprint. Its 2-head construction allows independent offsets and synchronized operations of the Z axis and W axis, resulting in the ability to produce accurate micro holes with extreme precision and increased surface finishes.
pm-last-longer

Nomura DS Machines for Every Industry

CNC machines are used in nearly every application. Discover how Nomura DS machining can enhance your production and boost efficiency in your industry.

Resources

Support

Get the knowledge you need to run your operation more smoothly and profitably. Access industry case studies, manuals and more.

Keep your machine up and running with unmatched technical service and support.

Specifications

General Info
Floor Space
106.69 x 102.36 in
Table Size
17.71 x 19.69 in
Controller
Mitsubishi M80
Tool Stations
12 x 2
Spindle
Speed
38,000 RPM plus optional RPM (48,000) (58,000)
Power
8 HP
Taper
HSK-E32 - Ultrasonic
Travel
Travel (X, Y, Z)
27.56 x 17.71 x 4.72 in
Rapid Traverse
1889.7 ipm
