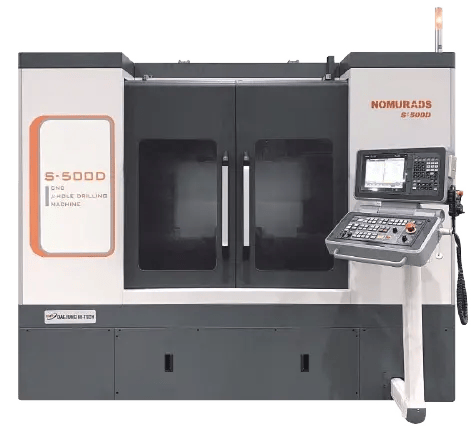

S-500D
The S-500D is a HSK-E32 taper dual-spindle bridge mill design with ultrasonic spindles for micro hole machining. It is equivalent to two machines in a single footprint. Its 2-head construction allows independent offsets and synchronized operations of the Z axis and W axis, resulting in the ability to produce accurate micro holes with extreme precision and increased surface finishes.
HSKTaper |
8HP Spindle |
38kRPM |
Product Overview
The S-500D is a HSK-E32 taper dual-spindle bridge mill design with ultrasonic spindles for micro hole machining. It is equivalent to two machines in a single footprint. Its 2-head construction allows independent offsets and synchronized operations of the Z axis and W axis, resulting in the ability to produce accurate micro holes with extreme precision and increased surface finishes.
![pm-last-longer](https://139128.fs1.hubspotusercontent-na1.net/hub/139128/hubfs/.nomurads/NOMURADS%20PARTS/NOMURADS%20MILLING%20PARTS/pm-last-longer.png?width=300&name=pm-last-longer.png)
Nomura DS Machines for Every Industry
CNC machines are used in nearly every application. Discover how Nomura DS machining can enhance your production and boost efficiency in your industry.
Resources |
Support |
Get the knowledge you need to run your operation more smoothly and profitably. Access industry case studies, manuals and more. |
Keep your machine up and running with unmatched technical service and support. |
Specifications
General Info
Floor Space
106.69 x 102.36 in
Table Size
19.69 x 19.69 in
Controller
Mitsubishi M80
Tool Stations
12 x 2
Spindle
Speed
38,000 RPM plus optional RPM (48,000) (58,000)
Power
8 HP
Taper
HSK-E32 - Ultrasonic
Travel
Travel (X, Y, Z)
27.56 x 19.69 x 7.87 in
Rapid Traverse
1889.7 ipm
